SQL server installation and configuration

Montag, 5. November 2018 / Leave a Comment

SQL server installation

The software needs a Microsoft SQL Server for storing data. All versions from 2008 R2 or newer are supported, including SQL Azure. You can use an existing database server, but the user you are logging in needs to have admin privileges on the database server to create the necessary databases and tables.
The software uses two databases.

Measurements database
  • Standards
  • Samples
  • Product setups
  • Instruments
  • Event log
  • Standards
  • Jobs
  • Workflows
  • Instruments
  • Instrument modes
Shared database
  • Users
  • Status
  • Display groups
  • Scheduler entries
  • Workspace layouts
  • Infopanel layouts
  • Reports
  • Job groups
  • Shared settings
  • Table layouts
  • Systems

If you are using only one system or do not plan to share settings, you can use a single database. To do so, set the connection for both, the measurements and shared database to the same.
If you are using multiple systems and want to access them from multiVIEW, you will need a different database for the shared settings.
For example, if you are using 3 installations of colorWorkbench and want to access them from another computer to see the measurements, you will actually need 4 databases: 3 measurements databases and one shared database.
Do NOT use the same measurements database for different lines! Only the shared database is intended to be used by multiple lines!
You can install the SQL Server by your own or let the colorWorkbench/colorLAB installer do this for you.
If colorWorkbench/colorLAB installed the SQL Server for you, everything is set up as needed.
If you choose to install it by hand, see below:

Manual SQL server installation

The installation is described for the SQL Server 2014 Express SP2 Edition which can be downloaded here:


Double-Click on the installation icon.

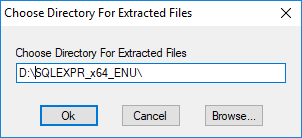

The installer asks where to extract the files. You can leave the default path or change it:

After clicking OK extraction starts:

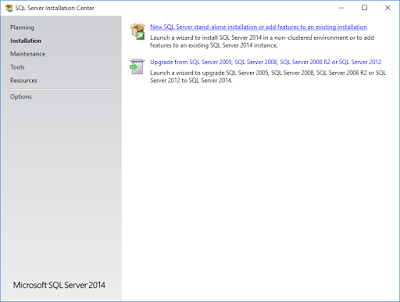

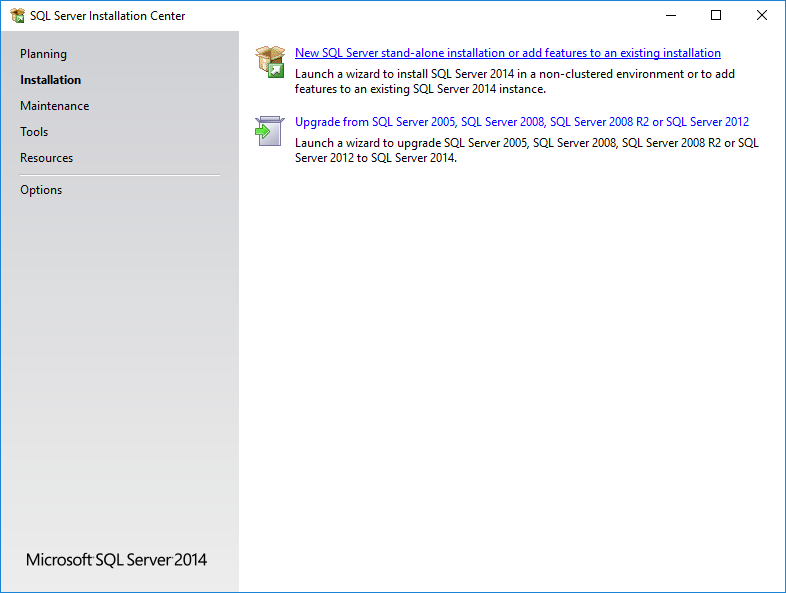

The SQL Server Instalaltion Center will appear after extraction. Select New SQL Server stand-alone or add features to an existing installation:

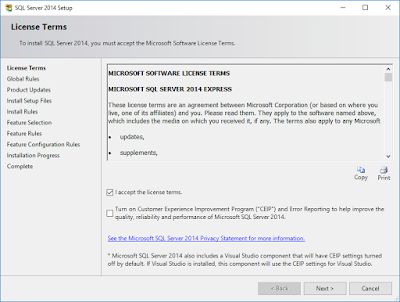

Accept the license terms and click Next:

At the Feature selection page just click Next:

At Instance Configuration page click Next, unless there is already an instance with the default name SQLEXPRESS on the computer. You will have to change the instance name to something different then:

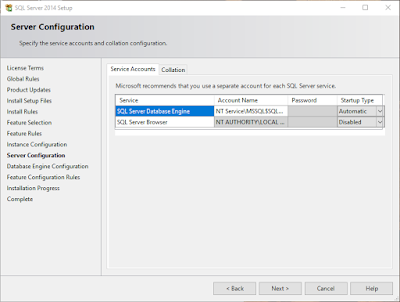

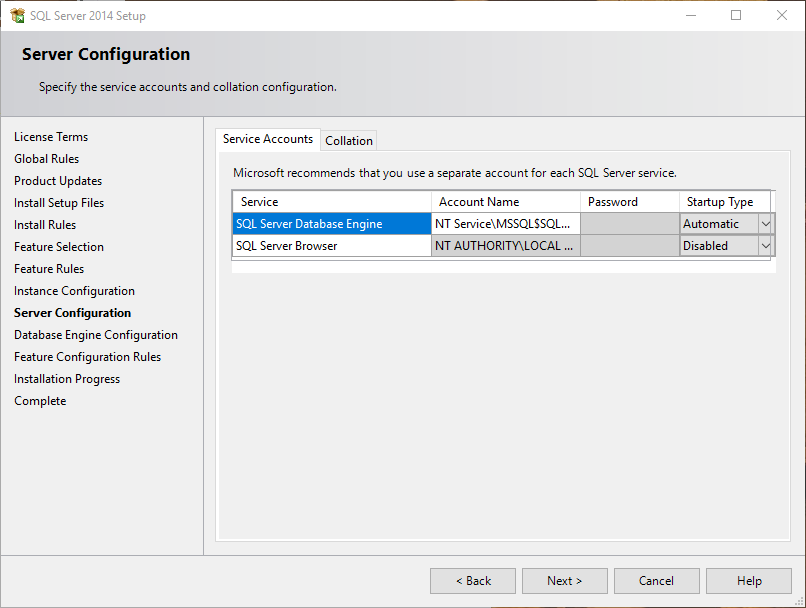

At Server Configuration page click Next:

At Database Engine Configuration page, set the Authentication Mode to Mixed mode and provide a password for the sa user. Then click Next:

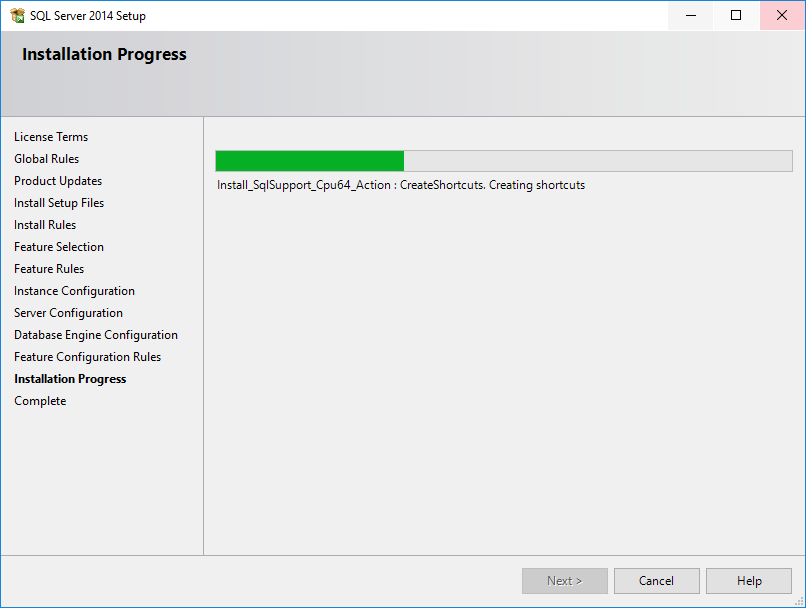

Now the installation starts. Wait until it is finished:

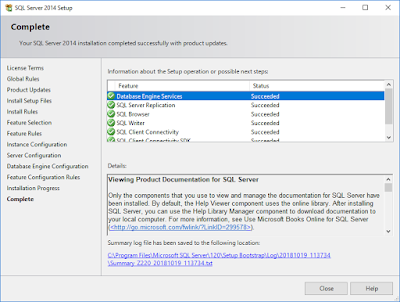

If everything went fine, all entries should display Status Succeded:

If there are any errors during the installation, please install all available Windows updates and retry the installation. In any case of errors, it can also be helpful to disable any third-party anti-virus software.
Weiterlesen »

colorWorkbench installation guide

/ Leave a Comment

Install instructions for colorWorkbench 18.2 or newer

System requirements

Minimum system

•    Minimum Dual-Core, Intel i5 with 2GHz or better
•    Minimum 4GB Ram
•    OS supported: Windows 7 SP1, Windows 8.1, Windows 10

Do NOT install in a virtual machine or on a Windows Terminal Server! These scenarios are not tested and not supported!

Recommended system

•    Quad-core with 2.5GHz
•    8GB Ram
•    Windows 10 x64

colorWorkbench installation

Start the installation by double clicking on the installer icon. You will need admin privileges to install the software, but not for running it later.

If there are some components missing, the prerequisites are installed first. This can include the .NET Framework 4.7 which is needed in any installation scenario. The SQL Server 2014 is optional.

You can either install it by hand before the colorWorkbench installation (then it will not be selected as prerequisite here) or you can use a SQL Server on another computer. This depends on your installation scenario.

For more information about database scenarios and SQL server installation, please read here.

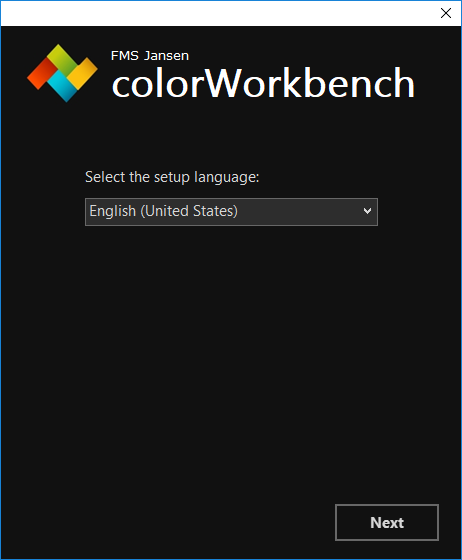

Select a language first, then click Next

If some prerequisites are missing, those are installed first. Click Next:

Select the SQL Server component only, if you need to! If you have already manually installed the SQL Server, this option will not be selectable. If you use a SQL server installation on another computer, uncheck the installation!
If the .NET Framework has to be installed, this option will also be presented here, but you cannot unselect it since it’s a necessary component to run colorWorkbench.
If you have any problems during the installation of the .NET Framework (especially under Windows 7) then run Windows update to update your computer and try again. Click Next:


Then the colorWorkbench installation will start. Click Next:

Check the License agreement box. Then click Install:

After a short while, the program is installed. Start it by double-clicking the colorWorkbench icon on the desktop.

colorWorkbench basic configuration

When the software is started for the first time, some basic settings have to be done. Enter a name for the system. This should be a unique name for the line like “Production line 1”. The name is important, if you have more than one line. Select the language and check the checkbox for touchscreen support, if needed:

Then configure the measurements database connection. Click on Connection Measurements.

Measurements database settings

If it’s the first installation, the system will have default values that should work when you have installed the SQL server with the colorWorkbench setup. If you have manually installed it or if you are using another database server, you have to alter the settings. If the settings are ok, click on OK:

If the database does not exist, but the server settings are okay, you will be asked, if you want to create the database now. Click Yes to create the database or No to change your settings:

If you choose to create the database, you will be asked, if you are using metric or imperial units. Choose a value that fits your needs. This setting is important for the SpectraTrend’s distance sensor setting and for the settings in the auto-created standard in the database:

After creating the measurements database, you are back in the main window and the SQL server and database fields for the measurements database will show the settings you have made:

Then click on Connection shared to set up this connection.

Shared database settings

The connection settings will be pre-set to the values of the measurements database. If you are using only one system, this is okay, if you are using more than one system in combination with multiVIEW, choose a different database here! In this case enter CWShared for example in the database field and click New database to create it. After that, click OK:

Database setup example

You have three systems on three computers. Each system should be reachable through colorObserver. There is no external SQL server.

Measurements databaseShared database
Computer 1Computer1\SQLEXPRESS
Database name: CWData
Database name: CWShared
Computer 2Computer2\SQLEXPRESS
Database name: CWData
Database name: CWShared
Computer 3Computer3\SQLEXPRESS
Database name: CWData
Database name: CWShared
In this case, as the shared database is on Computer 1, it needs to be run even if no measurements are taken on this line. colorWorkbench does not need to run, but the PC must be switched on.

Now both database connections are set and an instrument needs to be configured. Click on Sensor management:

Instrument setup

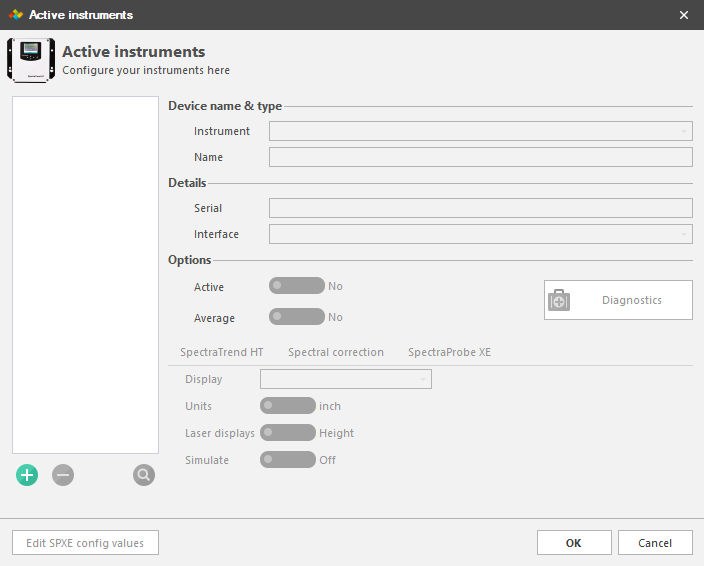

The device manager window will appear. To add a new instrument, click on the + button:

A new instrument is added with its default name. If you have more than one instrument at a line, choose an appropriate name like “left”, “right”, or “up” and “down”:

Then click on the search button:

If the instrument is not found, check network cabling and if the instrument is powered on. If it is not reachable, you can set the IP address of the instrument to a value that is reachable for the computer. To do so, use the Edit IP address button.

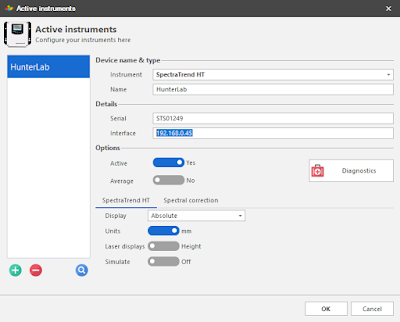

If the instrument was found and is reachable, the green checkmark indicates that communication is possible. Select the desired entry from the list and click Select:

After that, the configuration for the instrument(s) is complete. Click OK:

You are then back in the basic settings window. Click OK to close it. The software will start up and you are ready to use it.

You can then start configuring the views in the software, add standards and set up more options in the application settings. Please refer to the colorWorkbench manual for further details.

Add a license for colorWorkbench

To add a license file to colorWorkbench, start the software. Then go to the application menu and log in as administrator (default is empty password):

The License management button is enabled now:

Open License management:

Click on the folder button and select the license file from the file selector. The license information will be updated. Restart the software.
